Rating: 15A 125/250V AC

Contact Resistance: 15mΩ max.

Insulation Resistance: 100 MΩ Mim. 500V DC

Dielectric Strength: AC 1,000V for 1 Minute

Electrically Life: 100,000 operations min.

Mechanical Life: 1,000,000 operations min.

Operating Force(OF): 250~350g

Releasing Force(RF): 114g

Pretrsvle(PT): 0.4mm

Overtravel(OT): 3.58mm

Movement Differential(MD): 0.05mm

Operating Position(OP): 33.4±1.2mm

FUNCTION:

Z15G1108: Solder Terminal

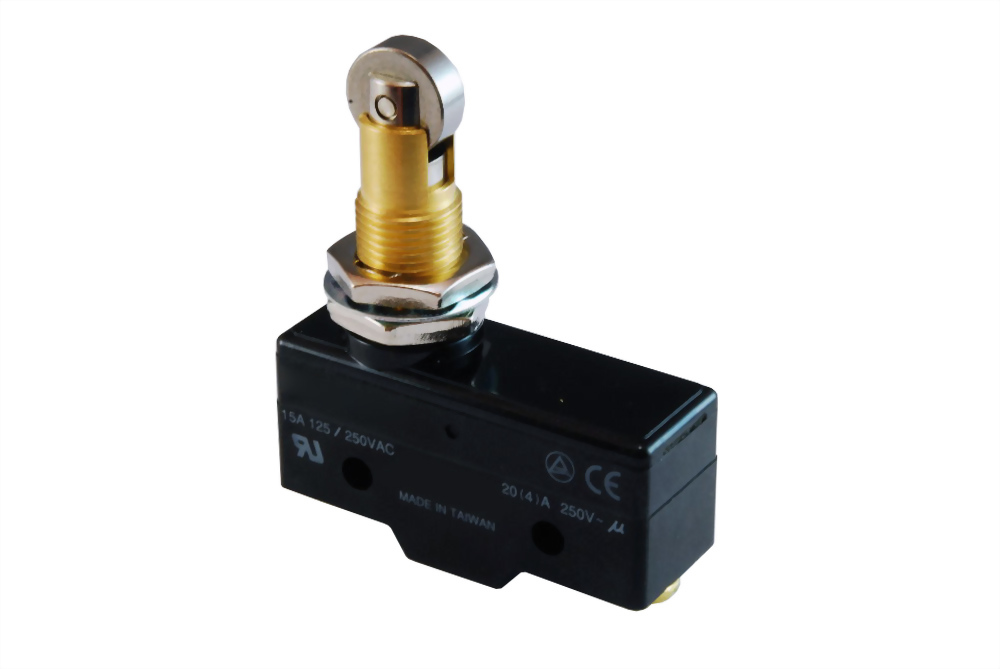

Z15G1308: Screw Terminal

Approvals: RoHS,UL,TUV,3C,CE
